Depuis 1985 au Grand Duché de Luxembourg

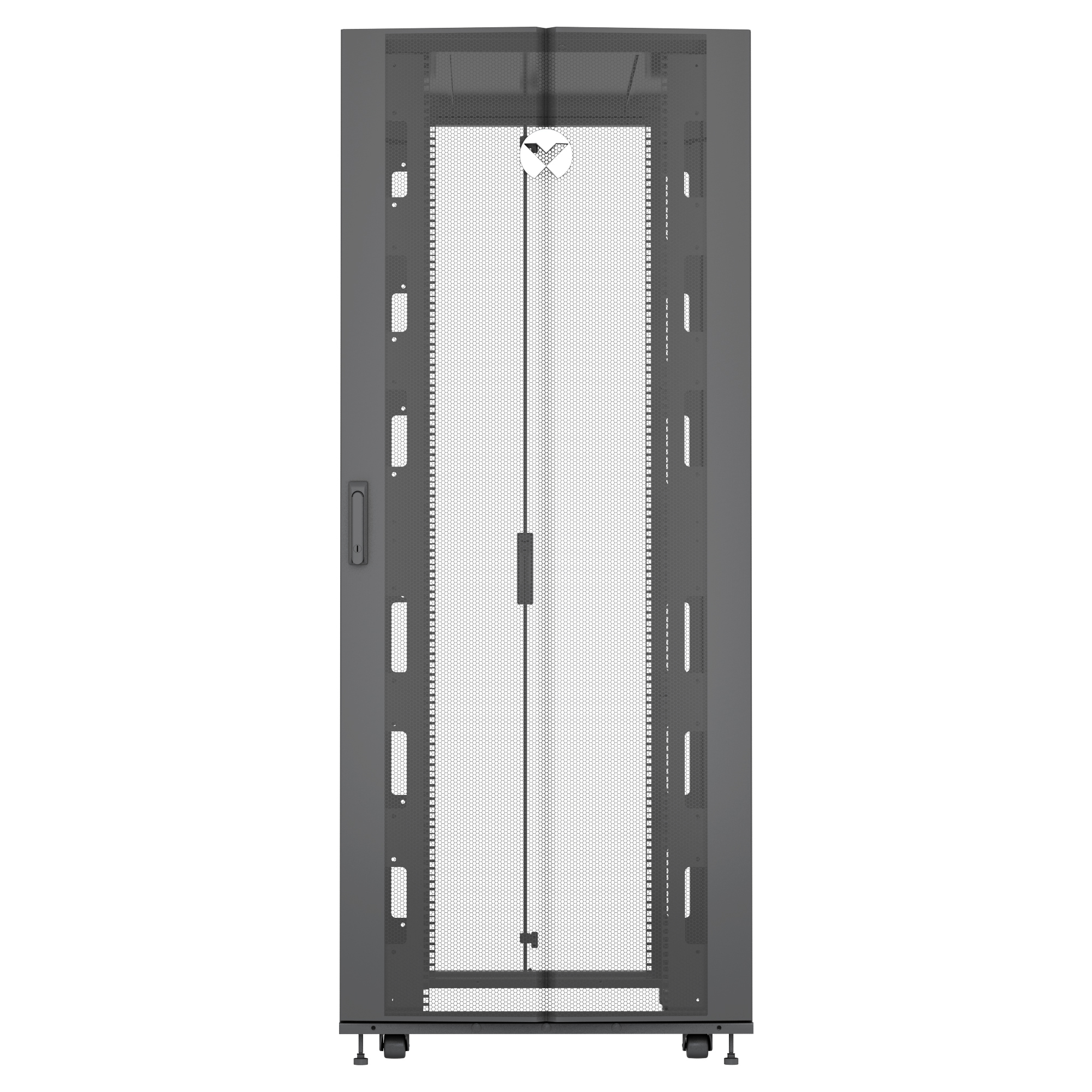

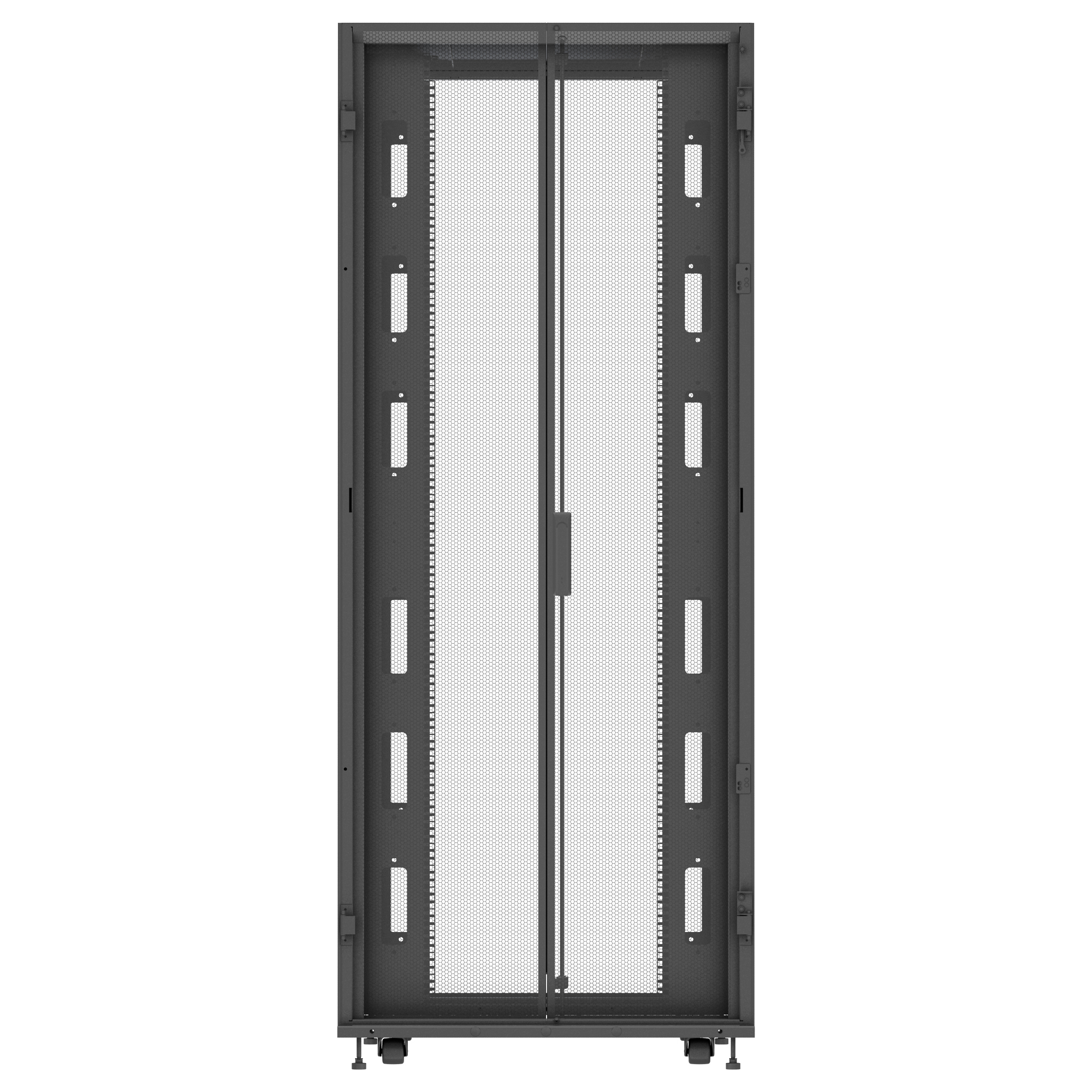

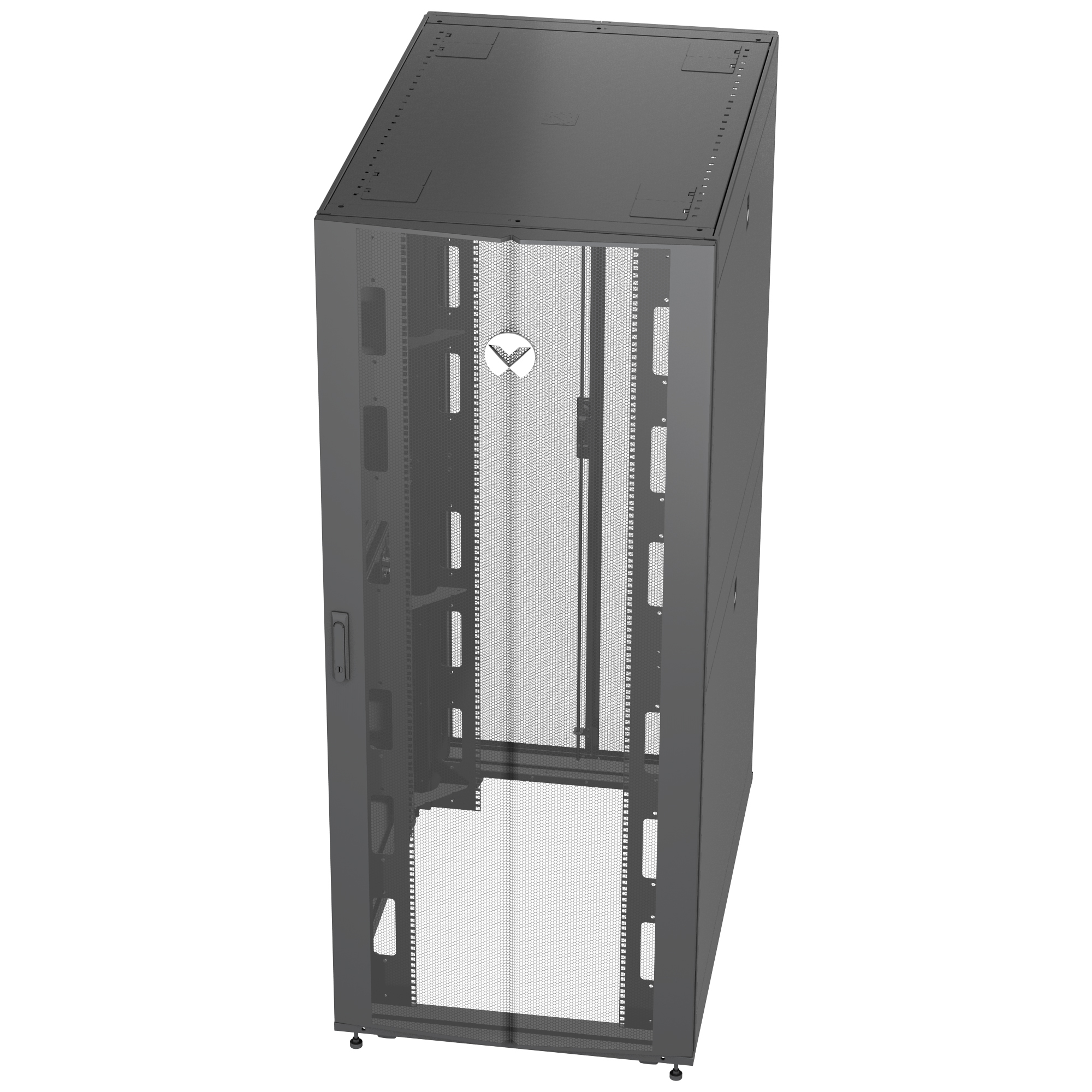

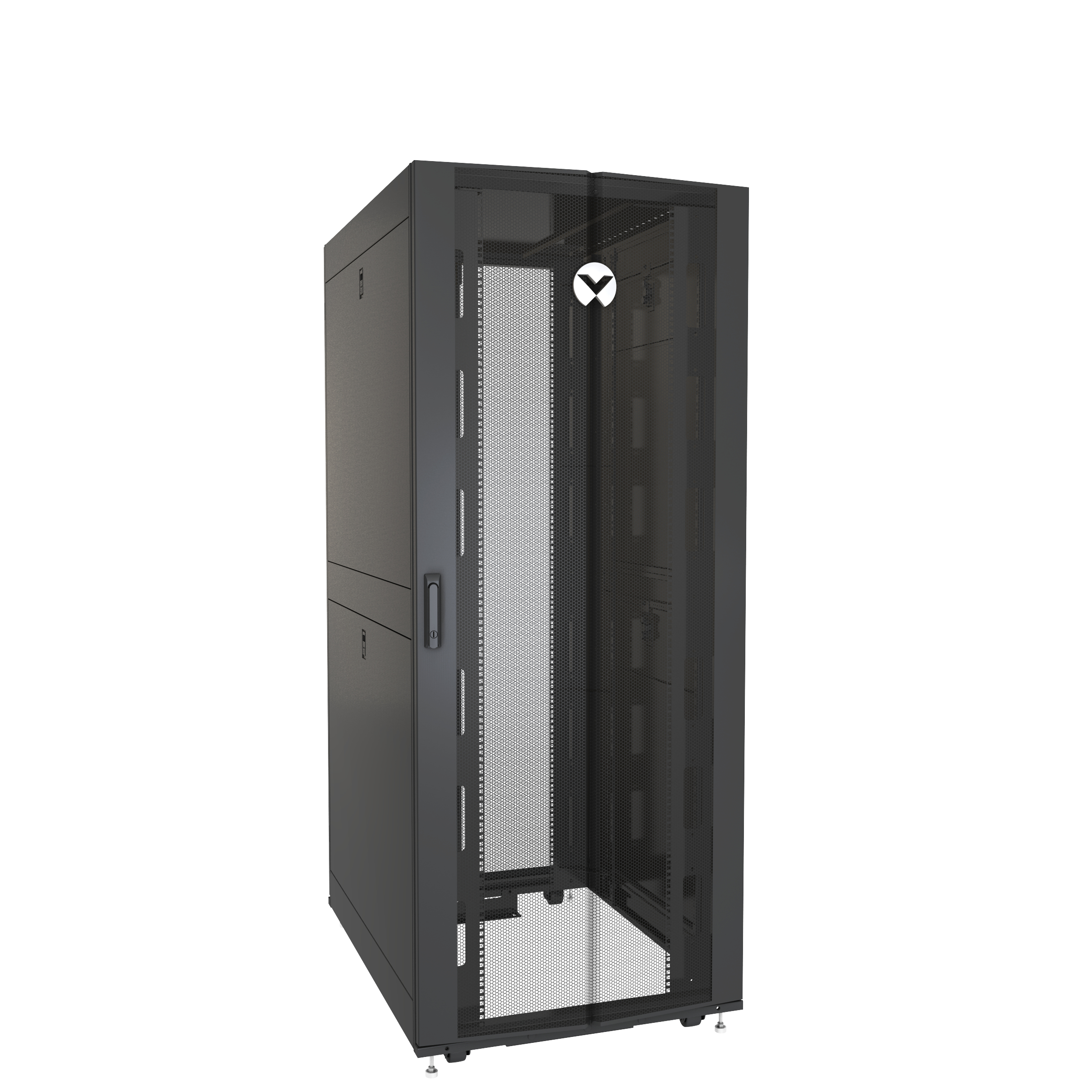

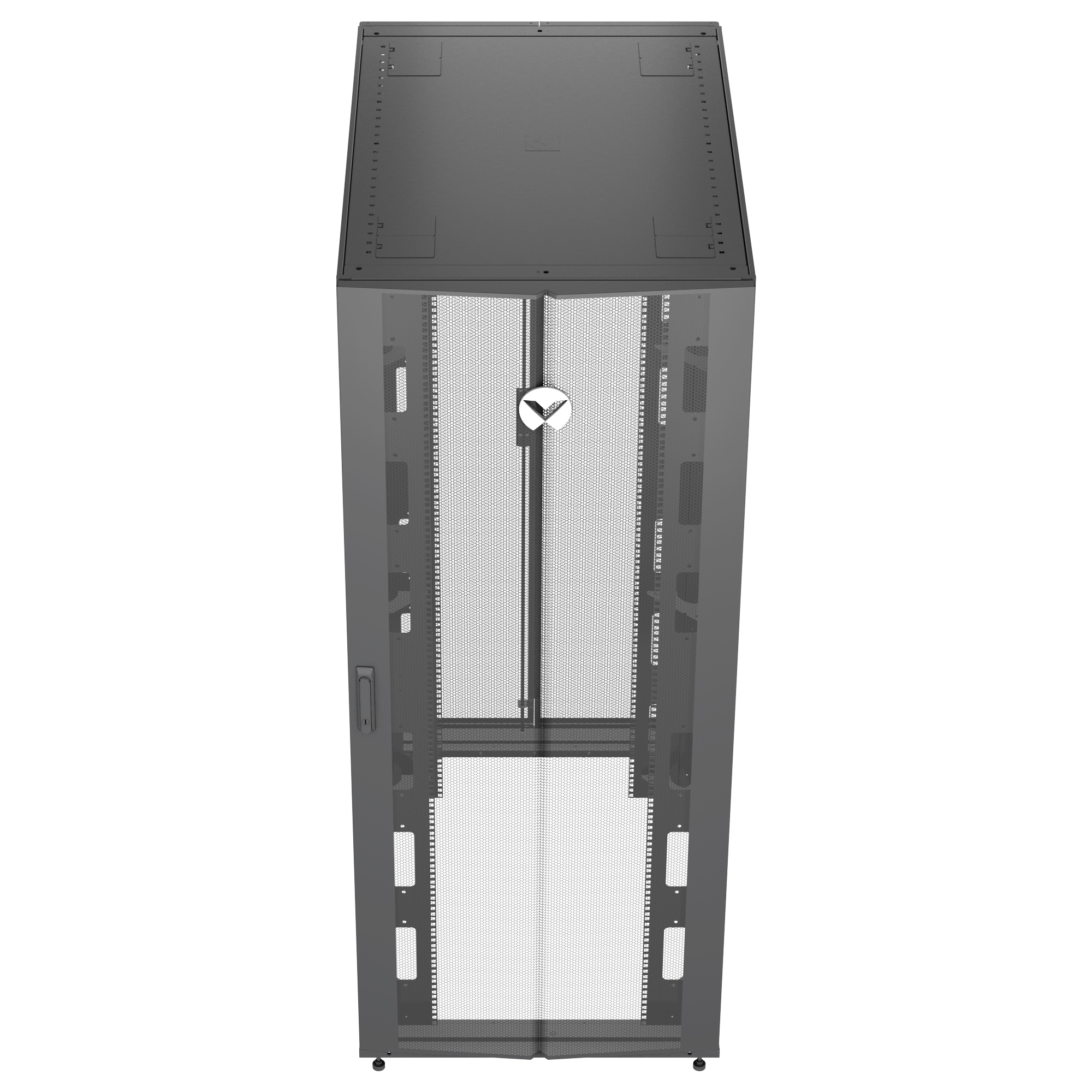

VR3150 - étagère 42U Rack autonome Noir, Transparent
Ref : VR31501.980,65 €
HTVA
Rack 42U 1998mm (1998 )H x 800mm (31.50 )W x 1115mm (43.89 )D with (1) 77% Perforated Locking Front Door (2) 77% Perforated Split Locking Rear Doors Casters and Leveling Feet
Points Clés
- 42U frame height that will allow access through standard doors on four swivel casters
- Frame capable of supporting up to 1360kg Static, 1022kg Dynamic
- High Density Cable Entry Top Panel Removable openings for cable entry — ready for front / rear cabling. Can accommodate over 2000 Cat 6 cables
- Low profile casters and leveling feet
- Single and split 77% perforated doors providing maximum airflow. Lift off hinges for easy removal, and field reversibility
- Two dual purpose full height depth adjustable PDU / Cable management brackets for tool-less mounting of PDUs and integrated cable tie off positions
Points Clés
- 42U frame height that will allow access through standard doors on four swivel casters
- Frame capable of supporting up to 1360kg Static, 1022kg Dynamic
- High Density Cable Entry Top Panel Removable openings for cable entry — ready for front / rear cabling. Can accommodate over 2000 Cat 6 cables
- Low profile casters and leveling feet
- Single and split 77% perforated doors providing maximum airflow. Lift off hinges for easy removal, and field reversibility
- Two dual purpose full height depth adjustable PDU / Cable management brackets for tool-less mounting of PDUs and integrated cable tie off positions
- Frame capable of supporting up to 1360kg Static, 1022kg Dynamic
- High Density Cable Entry Top Panel Removable openings for cable entry — ready for front / rear cabling. Can accommodate over 2000 Cat 6 cables
- Low profile casters and leveling feet
- Single and split 77% perforated doors providing maximum airflow. Lift off hinges for easy removal, and field reversibility
- Two dual purpose full height depth adjustable PDU / Cable management brackets for tool-less mounting of PDUs and integrated cable tie off positions
étagère 42U Rack autonome Noir, Transparent
VR3150Vertiv VR3150. Capacité du rack: 42U, Type: Rack autonome, Capacité de charge maximale: 1361 kg. Taille (impériale): 48,3 cm (19"), Largeur: 800 mm, Profondeur: 1100 mm. Matériel de montage inclus dans le kit: 50 each M6 cage nuts and screws, Cage nut installation tool, edge protection for top panel cable..., Largeur du colis: 826 mm, Profondeur du colis: 1385 mm
| Caractéristiques | |
| Capacité du rack | 42U |
| Type | Rack autonome |
| Capacité de charge maximale | 1361 kg |
| Capacité de poids maximum (qui roule) | 1022 kg |
| Couleur du produit | Noir, Transparent |
| Matériel | Métal |
| Construction de la porte arrière | Acier |
| Construction de la porte avant | Acier |
| Construction du panneau latéral | Acier |
| Porte arrière amovible | Oui |
| Porte avant amovible | Oui |
| Panneaux latéraux amovibles | Oui |
| Panneaux latéraux fournis | Oui |
| Verrouillage des touches | Oui |
| Verrou à clé pour porte arrière | Oui |
| Verrou à clé pour porte avant | Oui |
| Verrou à clé pour panneau latéral | Oui |
| Pieds réglables | Oui |
| Réglage des pieds | 5,4 cm |
| Gestion optimisée des câbles | Oui |
| Forme de trou de montage | Carré |
| Certification | EIA 310E, UL2416, REACH |
| Poids et dimensions | |
| Taille (impériale) | 48,3 cm (19") |
| Largeur | 800 mm |
| Profondeur | 1100 mm |
| Hauteur | 2000 mm |
| Poids | 162 kg |
| Informations sur l'emballage | |
| Écrous fournis | Oui |
| Nombre d'écrous | 50 |
| Vis incluses | Oui |
| Nombre de vis | 50 |
| Matériel de montage inclus dans le kit | 50 each M6 cage nuts and screws, Cage nut installation tool, edge protection for top panel cable entry, T30 extension driver and Keys |
| Largeur du colis | 826 mm |
| Profondeur du colis | 1385 mm |
| Hauteur du colis | 2134 mm |
| Volume de l'emballage | 2441317 cm³ |
| Poids du paquet | 202 kg |
| Détails techniques | |
| Certificats de durabilité | RoHS |
