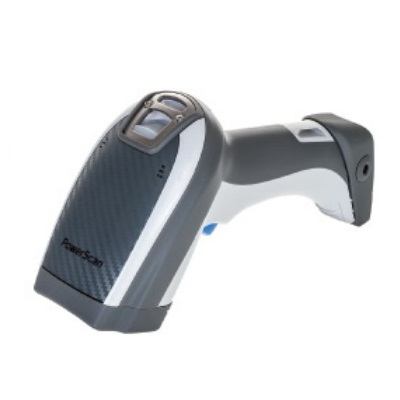

PM9501-WH-433-RT - PowerScan 9501 Retail Lecteur de code barre portable 1D/2D Laser Gris, Blanc
Ref : PM9501-WH-433-RT719,32 €
HTVAPowerScan 9501 Retail Lecteur de code barre portable 1D/2D Laser Gris, Blanc
PM9501-WH-433-RTThe series includes the Desk corded version (PD9531-RT), the cordless Bluetooth wireless technology version (PBT9501-RT) and the cordless mobile version with Datalogic’s STAR Cordless System (PM9501-RT).
The rugged mechanics of the PowerScan Retail series guarantees reliable long-term operation in retail activities. Repeated shocks at the POS checkout or outdoor usage do not inhibit the scanner’s performance or reliability, protecting the retailer’s investment. The IP65 rating further guarantees protection from damages caused by exposure to moisture.
The PowerScan Retail series provides snappy reading performance on all common 1D and 2D codes, as well as excellent performance when reading bar codes from mobile devices.
The PowerScan PBT9501-RT Retail series can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. The PowerScan PM9501-RT Retail series is offered with or without a display and the 16-key keyboard. Wide radio coverage and the full keypad allow these mobile imagers to be used at the POS checkout as well as for inventory or shelf replenishment activities.
The PowerScan Retail 9501 series is the first hand held series of scanners on the market capable of reading digital watermarks including Digimarc Barcodes. This new application significantly reduces time at the checkout. Additionally, product packaging that carries Digimarc Barcodes can connect mobile-enabled shoppers with additional product information, special offers, recommendations, reviews, social networks and more.
The rugged mechanics of the PowerScan Retail series guarantees reliable long-term operation in retail activities. Repeated shocks at the POS checkout or outdoor usage do not inhibit the scanner’s performance or reliability, protecting the retailer’s investment. The IP65 rating further guarantees protection from damages caused by exposure to moisture.
The PowerScan Retail series provides snappy reading performance on all common 1D and 2D codes, as well as excellent performance when reading bar codes from mobile devices.
The PowerScan PBT9501-RT Retail series can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. The PowerScan PM9501-RT Retail series is offered with or without a display and the 16-key keyboard. Wide radio coverage and the full keypad allow these mobile imagers to be used at the POS checkout as well as for inventory or shelf replenishment activities.
The PowerScan Retail 9501 series is the first hand held series of scanners on the market capable of reading digital watermarks including Digimarc Barcodes. This new application significantly reduces time at the checkout. Additionally, product packaging that carries Digimarc Barcodes can connect mobile-enabled shoppers with additional product information, special offers, recommendations, reviews, social networks and more.
Numérisation | |
Type | Lecteur de code barre portable |
Type de scanner | 1D/2D |
Type de capteur | Laser |
Linéaires (1D) codes barres acceptés | EAN-13, GS1 DataBar, JAN, Planet, POSTNET, RM4SCC / KIX, UPC-A, UPC-E |
Résolution du capteur optique (l x H) | 864 x 544 pixels |
Niveaux de luminosité (rayon direct du soleil) | 0 - 100000 lux |
Angle de lecture: Inclinaison (Tilt) | 0 - 360° |
Angle de lecture Horizontal (Pitch) | -40 - 40° |
Angle de lecture Vertical (Yaw) | -40 - 40° |
Connectivité | |
Technologie de connectivité | Avec fil &sans fil |
Interfaces standards | RS-232,USB |
Portée du routeur sans fil | 80 m |
Fréquence de fonctionnement | 433 MHz |
représentation / réalisation | |
Couleur du produit | Gris, Blanc |
Matériau du boîtier/corps | Plastique |
Code (IP) Internationale Protection | IP65 |
Fonctions de protection | Résistant aux chocs |
Alarme sonore | Oui |
Écran integré | Non |
Certification | R.E.A.C.H. |
Puissance | |
Type de source d'alimentation | Batterie, CC |
Consommation électrique typique | 8 W |
Technologie batterie | Lithium-Ion (Li-Ion) |
Capacité de la batterie | 3350 mAh |
Nombre de lectures par batterie | 60000 |
Temps de charge | 4,5 h |
Tension d'entrée | 10 V |
Consommation électrique | 500 mA |
Poids et dimensions | |
Poids | 400 g |
Largeur | 110 mm |
Profondeur | 74 mm |
Hauteur | 212 mm |
Conditions environnementales | |
Température d'opération | -20 - 50 °C |
Température hors fonctionnement | -40 - 70 °C |
Taux d'humidité de fonctionnement | 0 - 95% |
Détails techniques | |
Certificats de durabilité | RoHS |
