PEXUSB312C3 - StarTech.com PEXUSB312C3 carte et adaptateur d'interfaces Interne USB 3.2 Gen 1 (3.1 Gen 1)
Ref : PEXUSB312C361,95 €
HTVAEn Stock
LIVRAISON LUXEMBOURG : 1-2 JOURS OUVRABLES !

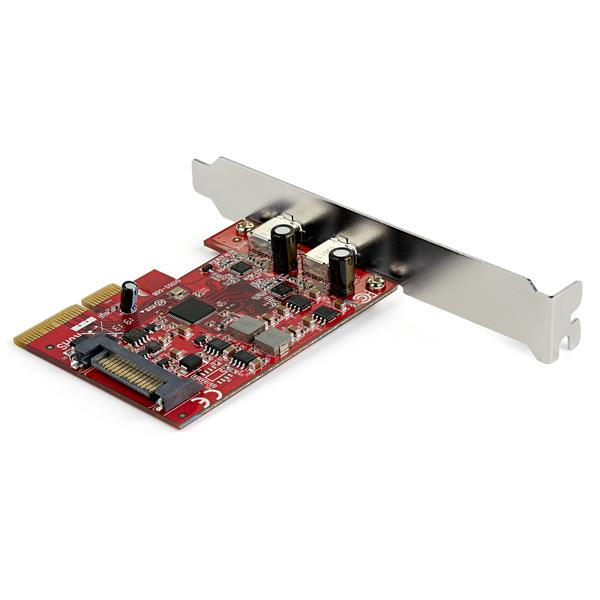

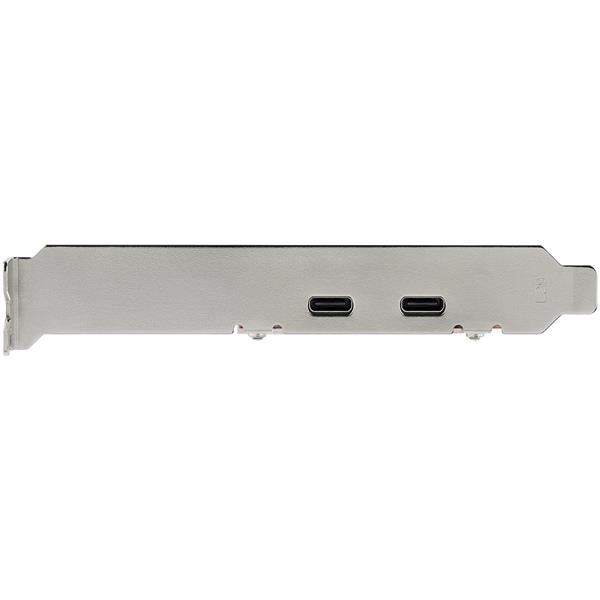

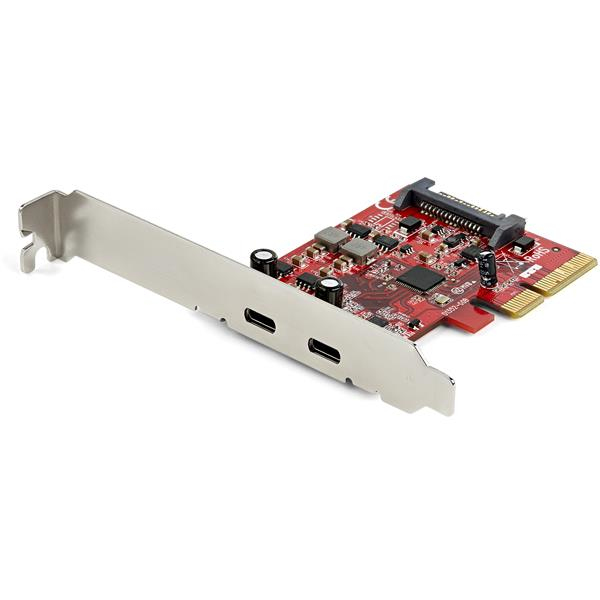

StarTech.com PCIe USB 3.1 Card, 2x USB C 3.1 Gen 2 10Gbps, PCIe Gen 3 x4, ASM3142 Chipset, USB Type-C PCI Express Card, 2-Port USB 3.2 Gen 2x1 Expansion Add-On Card, Windows, macOS, Linux - Full/Low-Profile - Adaptateur USB - PCIe 3.0 x4 profil bas - USB-C 3.1 Gen 2 x 2 - pour P/N: S252BU313R
Points Clés
- COMPATIBILITY: Installs in full/low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/ PCI-e 2.0)- Windows/Linux/macOS w/auto driver install (Windows 8 &- above)- Works w/USB 3.2/3.1/3.0/2.0_x000D_
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Host Controller card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected- 2x USB-C 10Gbps per port_x000D_
- MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives_x000D_
- POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports_x000D_
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty &- free lifetime 24 hour technical support on this dual port USB-C PCI Express Add On Card w/ full &- low profile bracket incl._x000D_
- _x000D_
Points Clés
- COMPATIBILITY: Installs in full/low-profile PCIe 3.0 x4 desktop/server slot (lower performance w/ PCI-e 2.0)- Windows/Linux/macOS w/auto driver install (Windows 8 &- above)- Works w/USB 3.2/3.1/3.0/2.0_x000D_
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Host Controller card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected- 2x USB-C 10Gbps per port_x000D_
- MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives_x000D_
- POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports_x000D_
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty &- free lifetime 24 hour technical support on this dual port USB-C PCI Express Add On Card w/ full &- low profile bracket incl._x000D_
- _x000D_
- HIGH PERFORMANCE: USB 3.1 Gen 2 or USB 3.2 Gen 2x1 PCIe Host Controller card supports Multiple INs, maintains max bandwidth even when mixed speed devices are connected- 2x USB-C 10Gbps per port_x000D_
- MAX PERFORMANCE WITH USB STORAGE DEVICES: 2-port USB-C PCIe Card adapter supports USB Attached SCSI Protocol (UASP) optimizing USB performance w/ external storage devices like SSDs, HDDs, NVMe drives_x000D_
- POWER: Expansion card w/ SATA power header supplies supplemental power to the USB Type-C ports (when motherboard power is insufficient) providing up to 5V 3A (15W) via the USB-C ports_x000D_
- THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty &- free lifetime 24 hour technical support on this dual port USB-C PCI Express Add On Card w/ full &- low profile bracket incl._x000D_
- _x000D_
StarTech.com PEXUSB312C3 carte et adaptateur d'interfaces Interne USB 3.2 Gen 1 (3.1 Gen 1)
PEXUSB312C3StarTech.com PEXUSB312C3. Interface de l'hôte: PCIe, Interface de sortie: USB 3.2 Gen 1 (3.1 Gen 1), Facteur de forme de carte d’extension: Hauteur totale / Profil bas. Certification: CE, FCC, REACH. Jeu de composants: ASMedia - ASM3142, Taux de transfert de données (max): 10 Gbit/s. Prise en charge du système d'exploitation Windows: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Prise en charge du système d'exploitation Mac: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Prise en charge du système d'exploitation serveur: Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019. Largeur: 80 mm, Profondeur: 122 mm, Hauteur: 18 mm
| Connectivité | |
| Interface de l'hôte | PCIe |
| Interface de sortie | USB 3.2 Gen 1 (3.1 Gen 1) |
| Facteur de forme de carte d’extension | Hauteur totale / Profil bas |
| Standard de carte d’extension | PCIe 3.0 |
| Quantité de ports de type C USB 3.2 Gen 2 (3.1 Gen 2) | 2 |
| Design | |
| Interne | Oui |
| Certification | CE, FCC, REACH |
| Caractéristiques | |
| Jeu de composants | ASMedia - ASM3142 |
| Taux de transfert de données (max) | 10 Gbit/s |
| Support UASP | Oui |
| Conditions environnementales | |
| Température d'opération | 0 - 70 °C |
| Température hors fonctionnement | -20 - 85 °C |
| Taux d'humidité de fonctionnement | 20 - 80% |
| Configuration minimale du système | |
| Prise en charge du système d'exploitation Mac | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Prise en charge du système d'exploitation Linux | Oui |
| Prise en charge du système d'exploitation serveur | Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Détails techniques | |
| Certificats de durabilité | RoHS |
| Poids et dimensions | |
| Largeur | 80 mm |
| Profondeur | 122 mm |
| Hauteur | 18 mm |
| Poids | 45 g |
| Informations sur l'emballage | |
| crochets d'élévation inclus | Oui |
| Guide d'utilisation | Oui |
| Largeur du colis | 142 mm |
| Profondeur du colis | 173 mm |
| Hauteur du colis | 30 mm |
| Poids du paquet | 120 g |
| Données logistiques | |
| Largeur du carton principal | 38 cm |
| Longueur du carton principal | 49 cm |
| Hauteur du carton principal | 32 cm |
| Quantité par carton principal | 60 pièce(s) |
