PEX4S953LP - carte et adaptateur d'interfaces Interne Série
Ref : PEX4S953LP113,05 €
HTVAEn Stock
LIVRAISON LUXEMBOURG : 1-2 JOURS OUVRABLES !

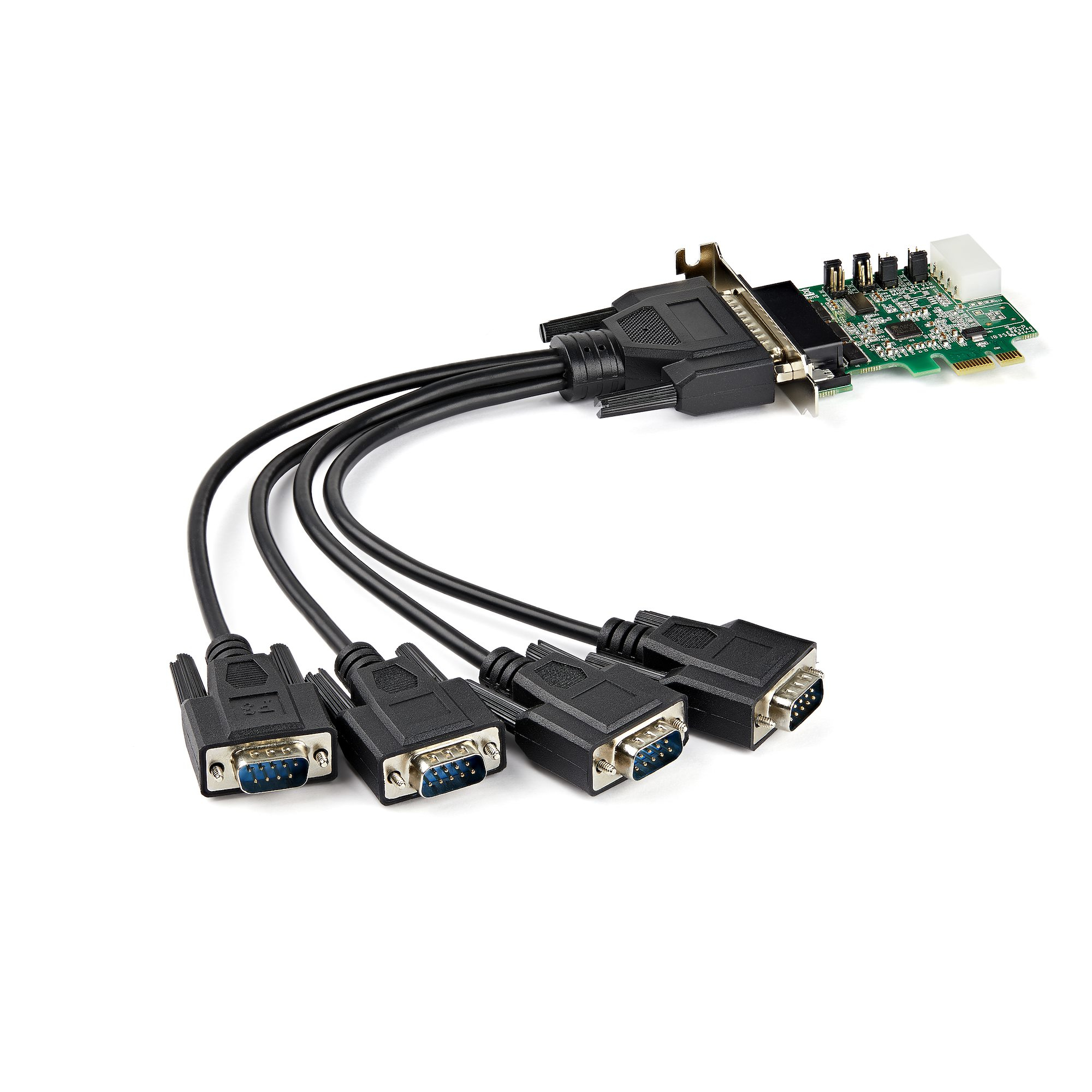

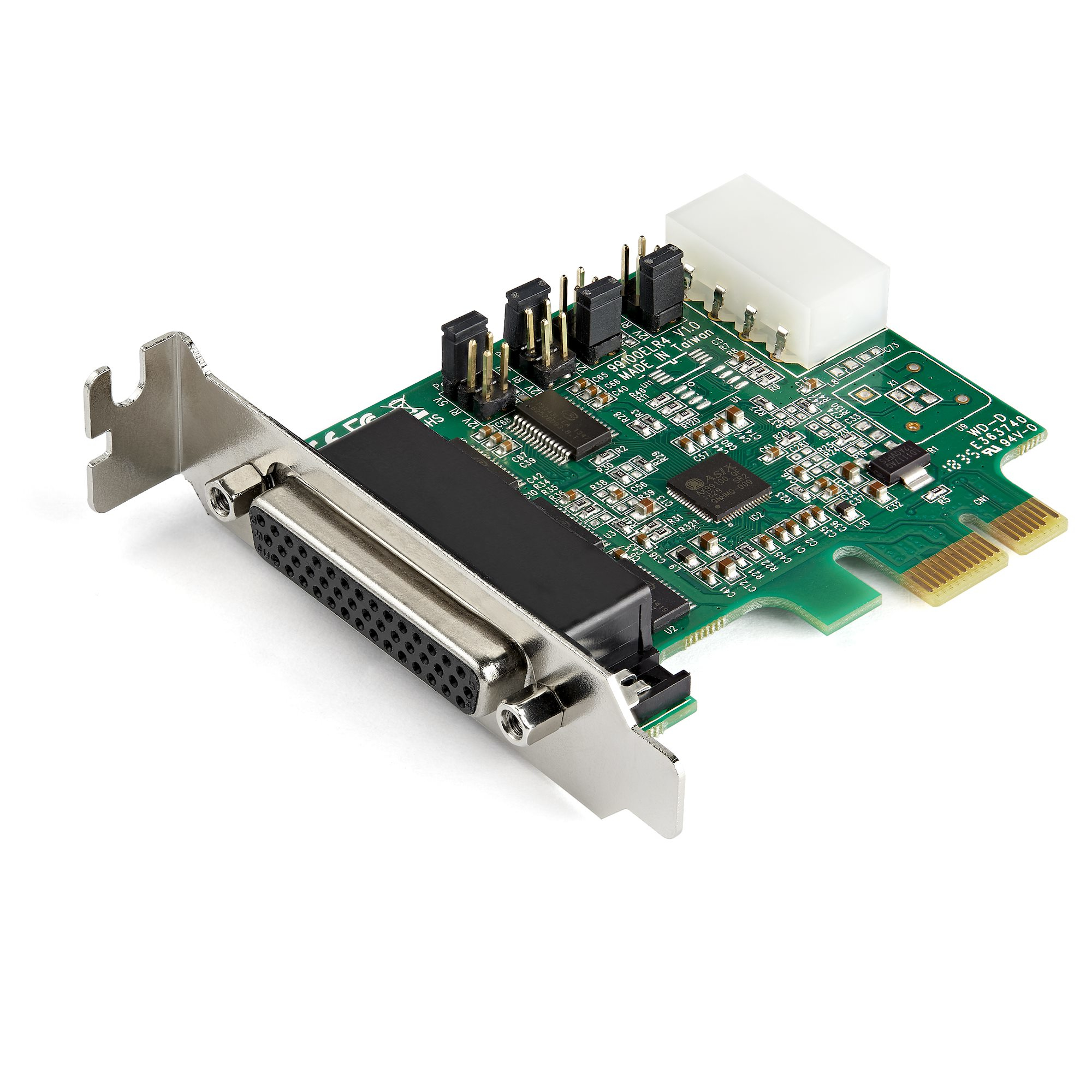

StarTech.com 4-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9, 16950 UART, Low Profile Desktop Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX4S953LP) - Adaptateur série - PCIe profil bas - RS-232 x 4
Points Clés
- 4 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer_x000D_
- OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 4 ports are individually configurable- DB44 to 4x DB9 breakout cable incl_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has low profile bracket pre-installed &- 1x standard bracket incl for versatile install- Supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope_x000D_
- _x000D_
Points Clés
- 4 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 4x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer_x000D_
- OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 4 ports are individually configurable- DB44 to 4x DB9 breakout cable incl_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has low profile bracket pre-installed &- 1x standard bracket incl for versatile install- Supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope_x000D_
- _x000D_
- OPTIONAL CONFIGURABLE POWER: PCIe multiport serial card provides 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 4 ports are individually configurable- DB44 to 4x DB9 breakout cable incl_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCI Express RS232 serial adapter card has low profile bracket pre-installed &- 1x standard bracket incl for versatile install- Supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope_x000D_
- _x000D_
carte et adaptateur d'interfaces Interne Série
PEX4S953LPStarTech.com PEX4S953LP. Interface de l'hôte: PCIe, Interface de sortie: Série, Standard de carte d’extension: PCIe 1.1. Couleur du produit: Vert, Temps moyen entre pannes: 214358 h, Certification: REACH, CE, FCC. Jeu de composants: Asix AX99100, Vitesse de transmission: 921,6 Kbit/s, FIFO (Premier entré, premier sorti): 256 o. Prise en charge du système d'exploitation Windows: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Prise en charge du système d'exploitation serveur: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Largeur: 75 mm, Profondeur: 63 mm, Hauteur: 18 mm
| Caractéristiques | |
| Bit de parité | Pair, Marque, Non, Impair, Espace |
| Bits d'arrêt | 1,1.5,2 |
| Données bits | 5,6,7,8,9 |
| FIFO (Premier entré, premier sorti) | 256 o |
| Jeu de composants | Asix AX99100 |
| Type de contrôle de flux | Non, RTS/CTS, XON/XOFF |
| Vitesse de transmission | 921,6 Kbit/s |
| Conditions environnementales | |
| Taux d'humidité de fonctionnement | 5 - 85% |
| Température d'opération | -10 - 80 °C |
| Température hors fonctionnement | -20 - 100 °C |
| Configuration minimale du système | |
| Prise en charge du système d'exploitation Linux | Oui |
| Prise en charge du système d'exploitation serveur | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Connectivité | |
| Interface de l'hôte | PCIe |
| Interface de sortie | Série |
| Standard de carte d’extension | PCIe 1.1 |
| Design | |
| Certification | REACH, CE, FCC |
| Couleur du produit | Vert |
| Interne | Oui |
| Temps moyen entre pannes | 214358 h |
| Détails techniques | |
| Certificats de durabilité | RoHS |
| Données logistiques | |
| Hauteur du carton principal | 23,5 cm |
| Largeur du carton principal | 48 cm |
| Longueur du carton principal | 35 cm |
| Quantité par carton principal | 16 pièce(s) |
| Informations sur l'emballage | |

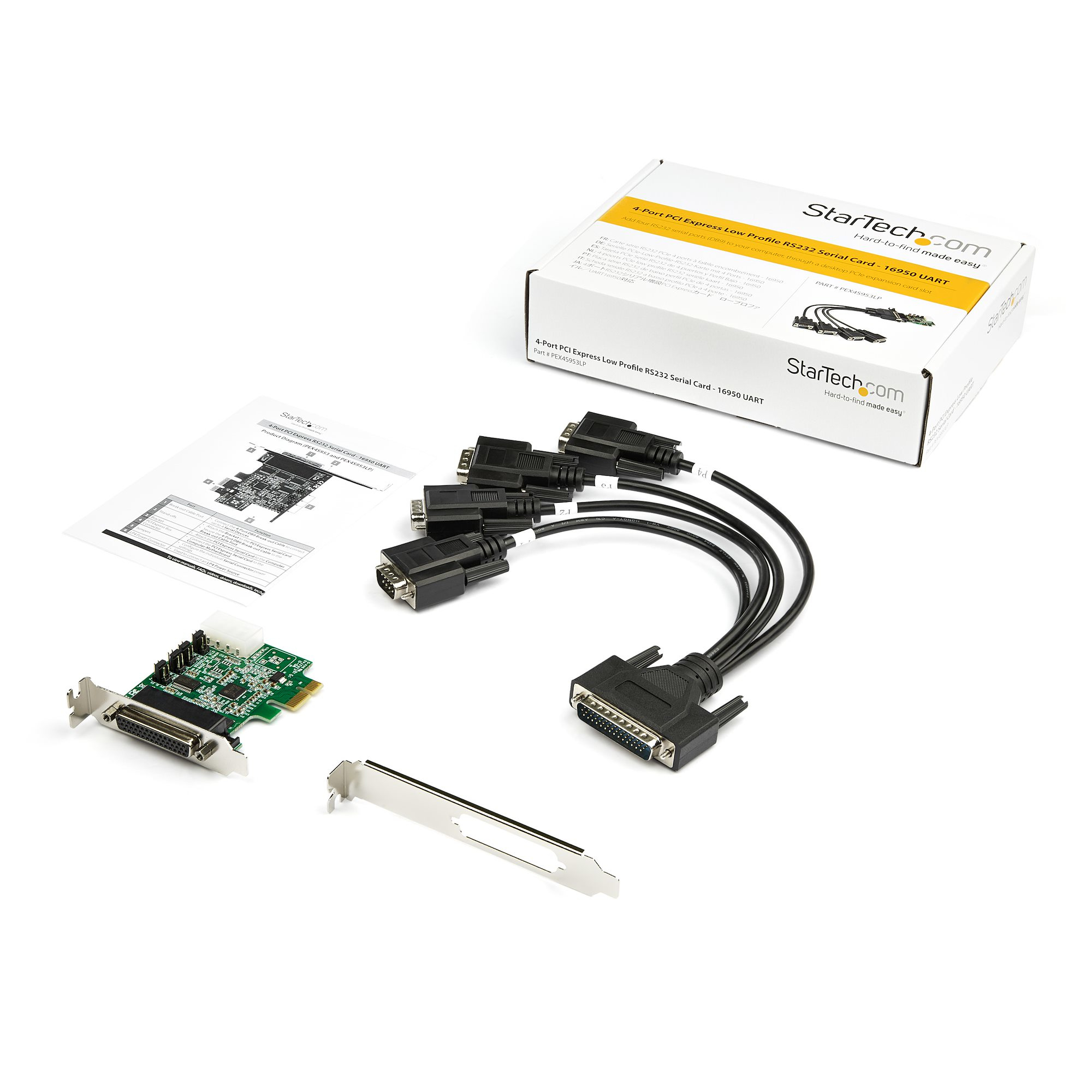

| Câbles inclus | Série |
| crochets d'élévation inclus | Oui |
| Guide d'installation rapide | Oui |
| Hauteur du colis | 51 mm |
| Largeur du colis | 213 mm |
| Poids du paquet | 370 g |
| Profondeur du colis | 149 mm |
| Quantité | 1 |
| Poids et dimensions | |
| Hauteur | 18 mm |
| Largeur | 75 mm |
| Poids | 264 g |
| Profondeur | 63 mm |
