PEX2S953 - StarTech.com PEX2S953 carte et adaptateur d'interfaces Interne Série
Ref : PEX2S95360,85 €
HTVAEn Stock
LIVRAISON LUXEMBOURG : 1-2 JOURS OUVRABLES !

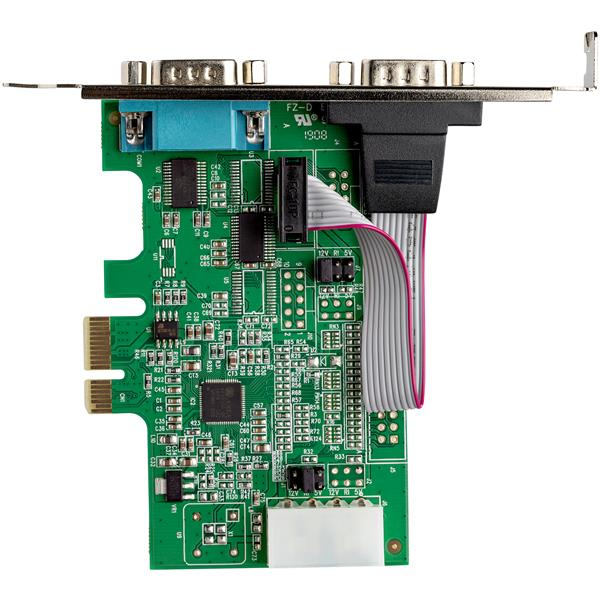

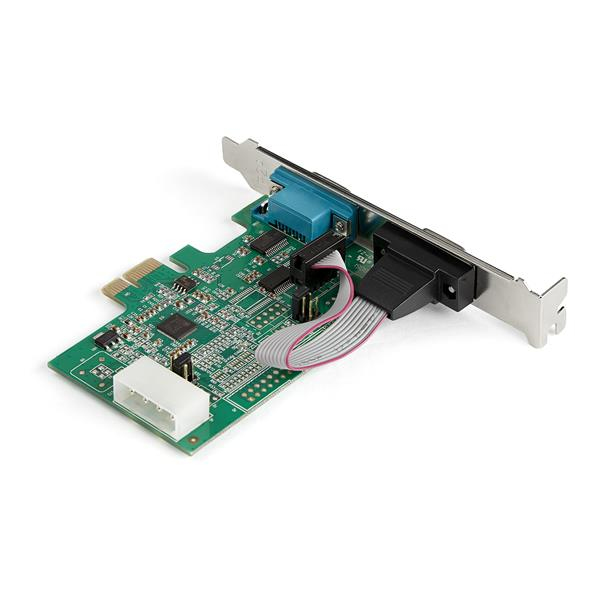

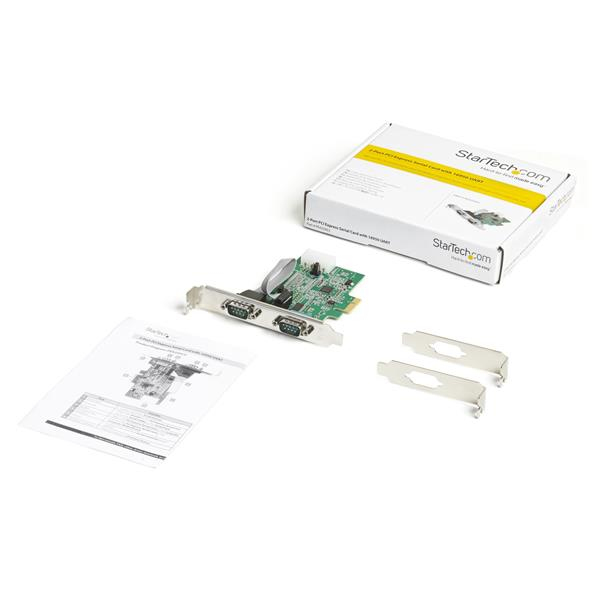

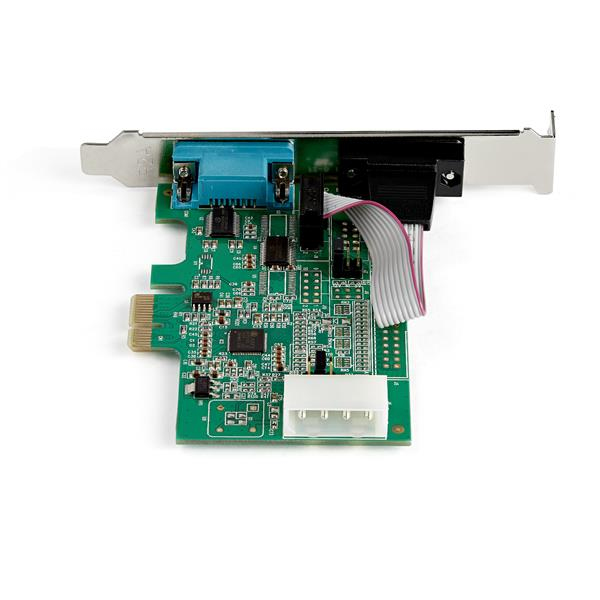

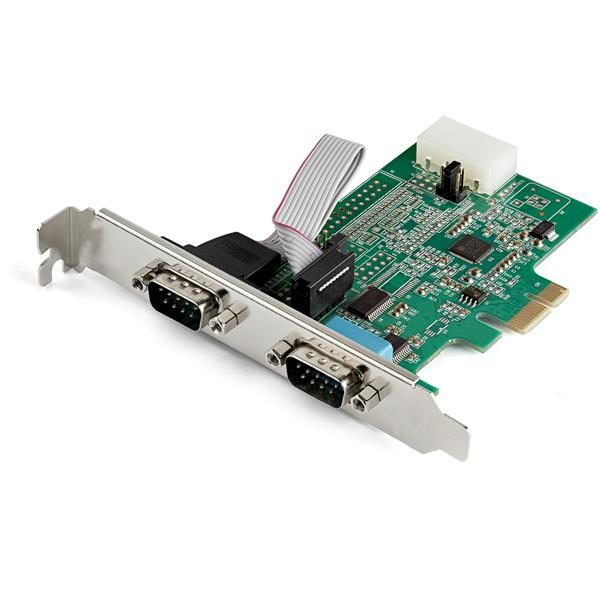

StarTech.com 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 COM Port Card, 16950 UART, Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX2S953) - Adaptateur série - PCIe - RS-232 x 2
Points Clés
- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer &- 9th data bit_x000D_
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 2 ports are individually configurable_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed &- 2x low profile brackets incl for versatile install- supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_
- _x000D_
Points Clés
- 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer &- 9th data bit_x000D_
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 2 ports are individually configurable_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed &- 2x low profile brackets incl for versatile install- supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_
- _x000D_
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 Serial Adapter Card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total- Each of the 2 ports are individually configurable_x000D_
- STANDARD PROFILE &- LOW PROFILE BRACKET: PCIe multiport serial card comes w/ a standard bracket pre-installed &- 2x low profile brackets incl for versatile install- supports Windows XP and up &- Linux_x000D_
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years- PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
- VERSATILE APPLICATIONS: For standard profile desktop/servers with uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_
- _x000D_
StarTech.com PEX2S953 carte et adaptateur d'interfaces Interne Série
PEX2S953StarTech.com PEX2S953. Interface de l'hôte: PCIe, Interface de sortie: Série, Standard de carte d’extension: PCIe 1.1. Couleur du produit: Vert, Temps moyen entre pannes: 222366 h, Certification: REACH, CE, FCC. Jeu de composants: Asix AX99100, Vitesse de transmission: 921,6 Kbit/s, FIFO (Premier entré, premier sorti): 256 o. Prise en charge du système d'exploitation Windows: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Prise en charge du système d'exploitation serveur: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Largeur: 63 mm, Profondeur: 75 mm, Hauteur: 15 mm
| Connectivité | |
| Interface de l'hôte | PCIe |
| Interface de sortie | Série |
| Standard de carte d’extension | PCIe 1.1 |
| Nombre de ports série | 2 |
| Type d'interface série | RS-232 |
| Design | |
| Interne | Oui |
| Couleur du produit | Vert |
| Temps moyen entre pannes | 222366 h |
| Certification | REACH, CE, FCC |
| Caractéristiques | |
| Jeu de composants | Asix AX99100 |
| Vitesse de transmission | 921,6 Kbit/s |
| FIFO (Premier entré, premier sorti) | 256 o |
| Données bits | 5,6,7,8,9 |
| Bits d'arrêt | 1,1.5,2 |
| Bit de parité | Pair, Marque, Non, Impair, Espace |
| Type de contrôle de flux | Non, RTS/CTS, XON/XOFF |
| Conditions environnementales | |
| Température d'opération | -10 - 80 °C |
| Température hors fonctionnement | -20 - 100 °C |
| Taux d'humidité de fonctionnement | 5 - 85% |
| Configuration minimale du système | |
| Prise en charge du système d'exploitation Linux | Oui |
| Prise en charge du système d'exploitation serveur | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Détails techniques | |
| Certificats de durabilité | RoHS |
| Poids et dimensions | |
| Largeur | 63 mm |
| Profondeur | 75 mm |
| Hauteur | 15 mm |
| Poids | 56 g |
| Informations sur l'emballage | |
| Quantité | 1 |
| Guide d'installation rapide | Oui |
| Largeur du colis | 170 mm |
| Profondeur du colis | 142 mm |
| Hauteur du colis | 30 mm |
| Poids du paquet | 136 g |
| Données logistiques | |
| Largeur du carton principal | 68,5 cm |
| Longueur du carton principal | 34,5 cm |
| Hauteur du carton principal | 30,6 cm |
| Quantité par carton principal | 75 pièce(s) |
