7Y37A01089 - carte et adaptateur d'interfaces Interne SAS, SATA
Ref : 7Y37A01089424,89 €
HTVA

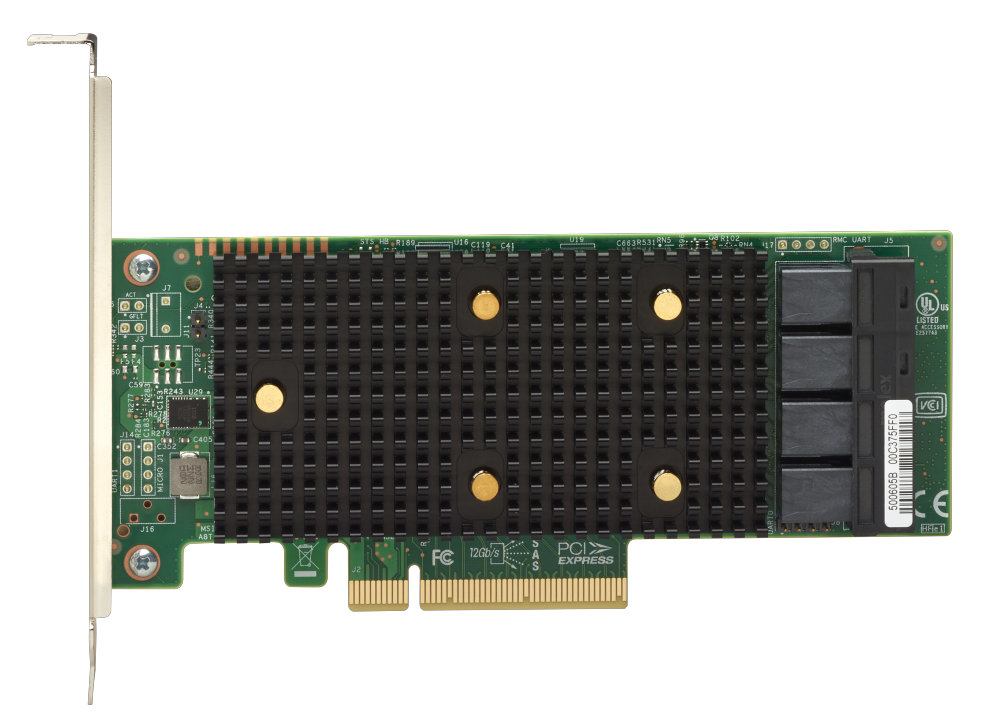

Lenovo ThinkSystem 430-16i - Contrôleur de stockage - 16 Canal - SATA / SAS 12Gb/s profil bas - 12 Gbit / s - PCIe 3.0 x8 - pour ThinkAgile HX3375 Appliance
Points Clés
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
- 430-16i support connectivity to 16 internal drives
- 430-8i support connectivity to 8 internal drives
- 8 or 16 internal 12 Gbps SAS/SATA ports
- Advanced power management support
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- Configuration through
- End-to-End CRC with Advanced Error Reporting
- High performance architecture with very deep queue depth
- LSI Storage Authority (LSA) GUI interface
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Optimized for SSD performance
- PCI low profile, half-length form factor
- PCIe 3.0 x8 host interface
- S.M.A.R.T. support
- Spread Spectrum Clocking for EMI reductions
- StorCLI command-line interface
- Support for SSP, SMP, STP, and SATA protocols
- Support internal SAS tape drives
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 512e, 512n and 4K (when available) formatted drives
- Supports 6 or 3 Gbps SATA speeds
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- UEFI Human Interface Infrastructure (HII)
- Up to 12 Gbps throughput per port
- XClarity Administrator Configuration Patterns
- XClarity Controller web interface
- XClarity Provisioning Manager UEFI interface
Points Clés
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
- 430-16i support connectivity to 16 internal drives
- 430-8i support connectivity to 8 internal drives
- 8 or 16 internal 12 Gbps SAS/SATA ports
- Advanced power management support
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- Configuration through
- End-to-End CRC with Advanced Error Reporting
- High performance architecture with very deep queue depth
- LSI Storage Authority (LSA) GUI interface
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Optimized for SSD performance
- PCI low profile, half-length form factor
- PCIe 3.0 x8 host interface
- S.M.A.R.T. support
- Spread Spectrum Clocking for EMI reductions
- StorCLI command-line interface
- Support for SSP, SMP, STP, and SATA protocols
- Support internal SAS tape drives
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 512e, 512n and 4K (when available) formatted drives
- Supports 6 or 3 Gbps SATA speeds
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- UEFI Human Interface Infrastructure (HII)
- Up to 12 Gbps throughput per port
- XClarity Administrator Configuration Patterns
- XClarity Controller web interface
- XClarity Provisioning Manager UEFI interface
- 430-16i support connectivity to 16 internal drives
- 430-8i support connectivity to 8 internal drives
- 8 or 16 internal 12 Gbps SAS/SATA ports
- Advanced power management support
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- Configuration through
- End-to-End CRC with Advanced Error Reporting
- High performance architecture with very deep queue depth
- LSI Storage Authority (LSA) GUI interface
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Optimized for SSD performance
- PCI low profile, half-length form factor
- PCIe 3.0 x8 host interface
- S.M.A.R.T. support
- Spread Spectrum Clocking for EMI reductions
- StorCLI command-line interface
- Support for SSP, SMP, STP, and SATA protocols
- Support internal SAS tape drives
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 512e, 512n and 4K (when available) formatted drives
- Supports 6 or 3 Gbps SATA speeds
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- UEFI Human Interface Infrastructure (HII)
- Up to 12 Gbps throughput per port
- XClarity Administrator Configuration Patterns
- XClarity Controller web interface
- XClarity Provisioning Manager UEFI interface
carte et adaptateur d'interfaces Interne SAS, SATA
7Y37A01089Lenovo 7Y37A01089. Interface de l'hôte: PCIe, Interface de sortie: SAS,SATA, Facteur de forme de carte d’extension: Hauteur totale / Profil bas. Couleur du produit: Noir, Vert, Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe.... Taux de transfert de données (max): 12000 Gbit/s. Systèmes d'exploitation compatibles: Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server..., Compatibilité: ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950,
| Connectivité | |
| Interface de l'hôte | PCIe |
| Interface de sortie | SAS,SATA |
| Facteur de forme de carte d’extension | Hauteur totale / Profil bas |
| Standard de carte d’extension | PCIe 3.0 |
| Mini-ports SAS HD internes | 4 |
| Design | |
| Interne | Oui |
| Couleur du produit | Noir, Vert |
| Caractéristiques | |
| Taux de transfert de données (max) | 12000 Gbit/s |
| Conditions environnementales | |
| Température d'opération | 10 - 55 °C |
| Température hors fonctionnement | -40 - 70 °C |
| Taux d'humidité de fonctionnement | 20 - 90% |
| Taux d'humidité relative (stockage) | 5 - 95% |
| Détails techniques | |
| Certificats de durabilité | RoHS |
| Autres caractéristiques | |
| Compatibilité | ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, |
