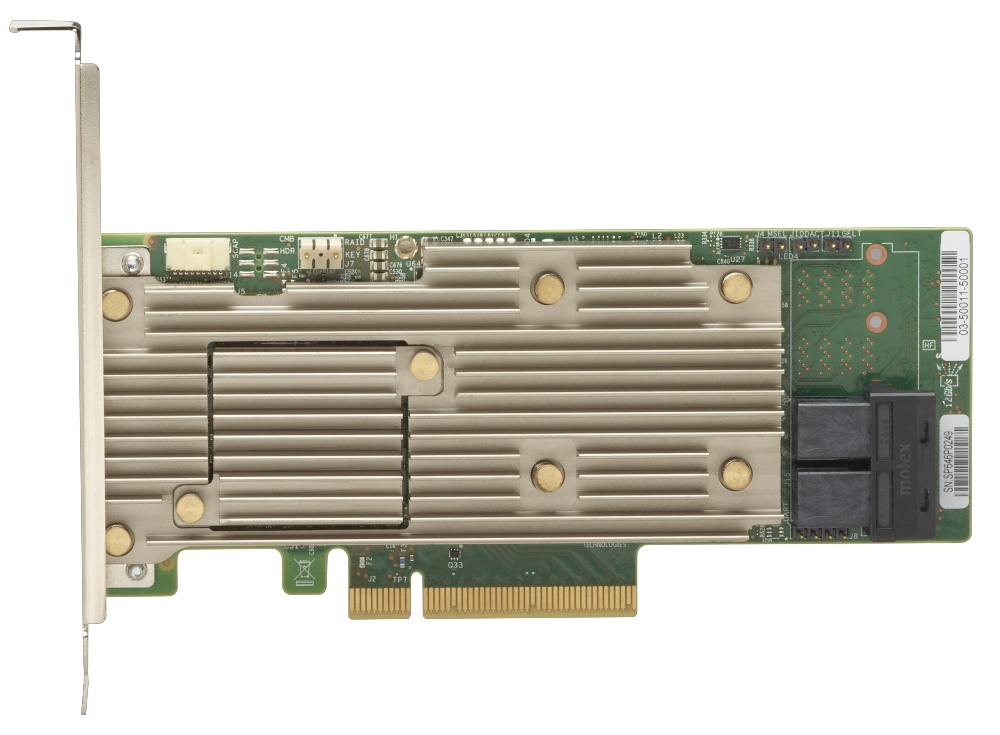

7Y37A01084 - Lenovo 7Y37A01084 contrôleur RAID PCI Express x8 3.0 12000 Gbit/s

Lenovo ThinkSystem 930-8i - Contrôleur de stockage (RAID) - 8 Canal - SATA / SAS 12Gb/s - profil bas - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - PCIe 3.0 x8 - pour ThinkSystem SR630 V2

Points Clés

- 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9460 adapter family
- 2GB or 4GB of integrated flash-backed cache
- CIe 3.0 x8 host interface
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- Configurable stripe size from 64 KB up to 1 MB
- Configuration through
- Connectivity for up to 2, 8, 16 or 24 internal SAS or SATA drives
- LSI Storage Authority (LSA) GUI interface
- S.M.A.R.T. support
- StorCLI command-line interface
- Support for intermixing of 12 Gbps and 6 Gbps drives
- Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported
- Support for JBOD (non-RAID) drive state
- Support for logical drive sizes greater than 2 TB
- Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard (The 930-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 5, 6 in the SN850 because those blade servers only support two and four drives respectively)
- Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array
- Supports 512e, 512n and 4K sector formatted drives
- UEFI Human Interface Infrastructure (HII)
- XClarity Administrator Configuration Patterns
- XClarity Controller web interface
- XClarity Provisioning Manager UEFI interface
